DeWalt DWS777 216mm Slide Mitre Saw with XPS-240V
216MM SLIDE MITRE SAW.
SKU
DEDWS777GB
Barcode
5035048633564
£382.67
(
£318.89
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / DeWalt DWS777
216MM SLIDE MITRE SAW
- The classic saw design improved and updated for the modern user
- New 1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
- New Single Point Dust Extraction Airlock compatible
- The base and fence have been machined to meet the accuracy requirements of the most demanding applications
- Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
- Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50° Sliding left hand fence with measuring scale for improved material support and management
Features / Specification
| Power Input 1800 Watts |
|---|
| Power Output 1100 Watt |
| Blade Speed 6300 rpm |
| Blade Diameter 216 mm |
| Blade Bore 30 mm |
| Bevel Capacity 48 ° |
| Mitre Capacity [right/left] 50/50 ° |
| Cutting Capacity at 90°/45° (W x H) 173 x 62 mm |
| Cutting Capacity at 90°/90° (W x H) 270 x 62 mm |
| Cutting Capacity at 90°/90° (W x H) 270 x 60 mm |
| Cutting Capacity at 45°/90° (W x H) 189 x 62 mm |
| Cutting Capacity at 45°/90° (W x H) 190 x 60 mm |
| Cutting Capacity at 90°/45° (W x H) 270 x 48 mm |
| Max. Cutting Capacity at 45°/45° 190x48 mm |
| Max. Depth of Cut [Saws] 80 mm |
| Weight 14.0 kg |
| Depth 550 mm |
| Length 490 mm |
| Height 590 mm |
| Hand/Arm Vibration - Cutting Wood 2.1 m/s² |
| Uncertainty K 1 (Vibration) 1.5 m/s² |
| Sound Power 104 dB(A) |
| Sound Power Uncertainty 3.9 dB(A) |
| Sound Pressure 93 dB(A) |
| Sound Pressure Uncertainty 3 dB(A) |
Supplied With

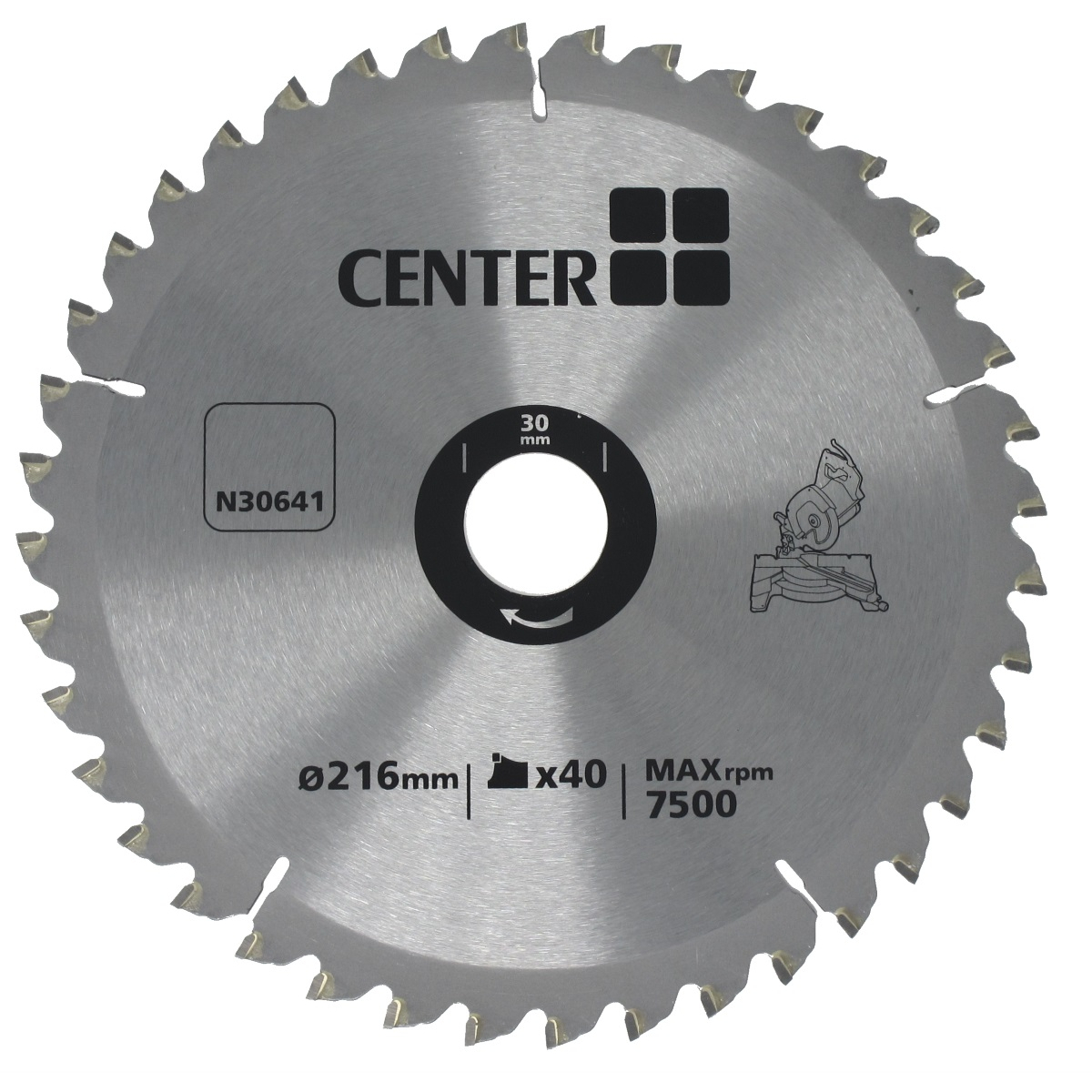

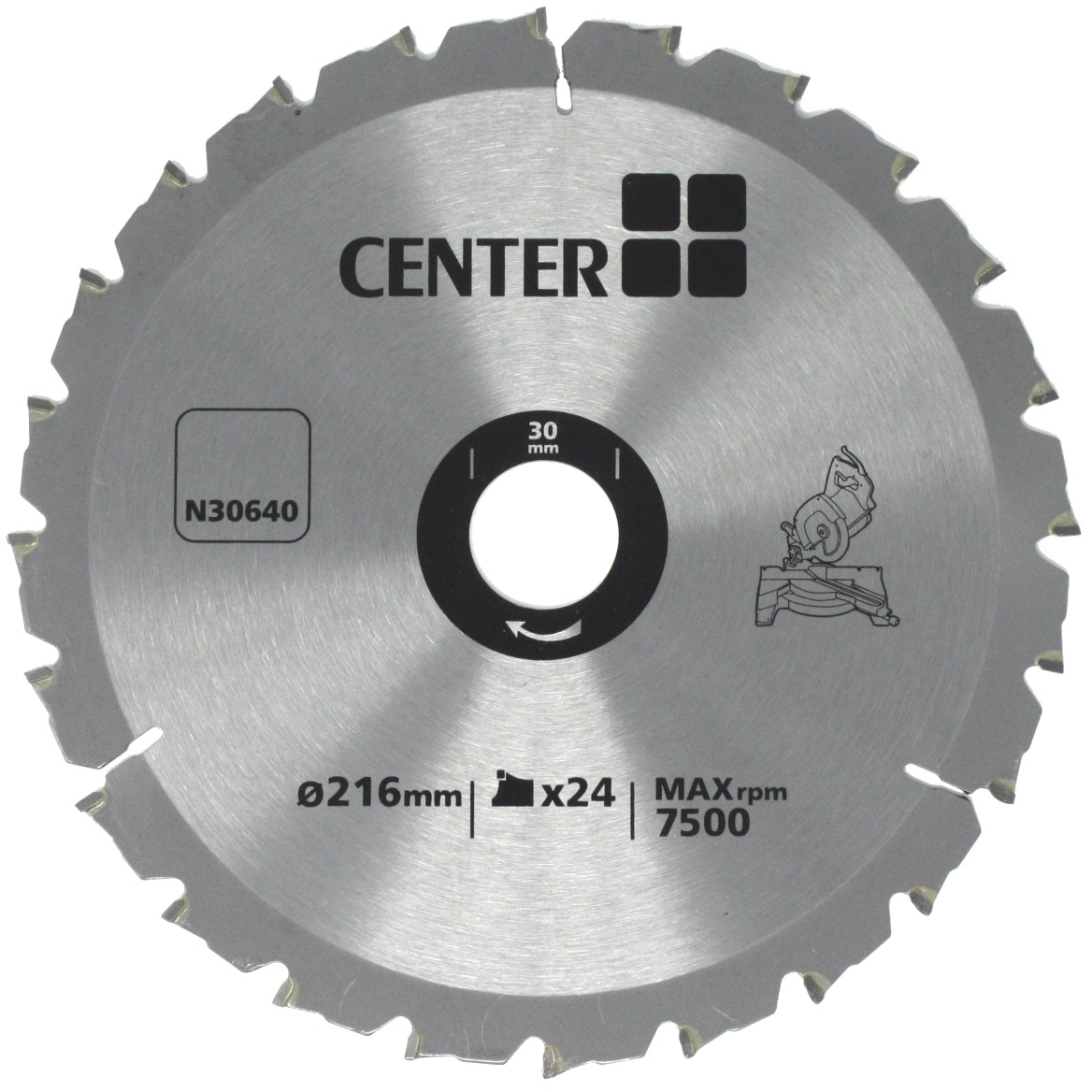

- TCT tooth saw blade Blade. Allen Keys. Material Clamp
